Residential
Everything the plant room needs, in one unit.

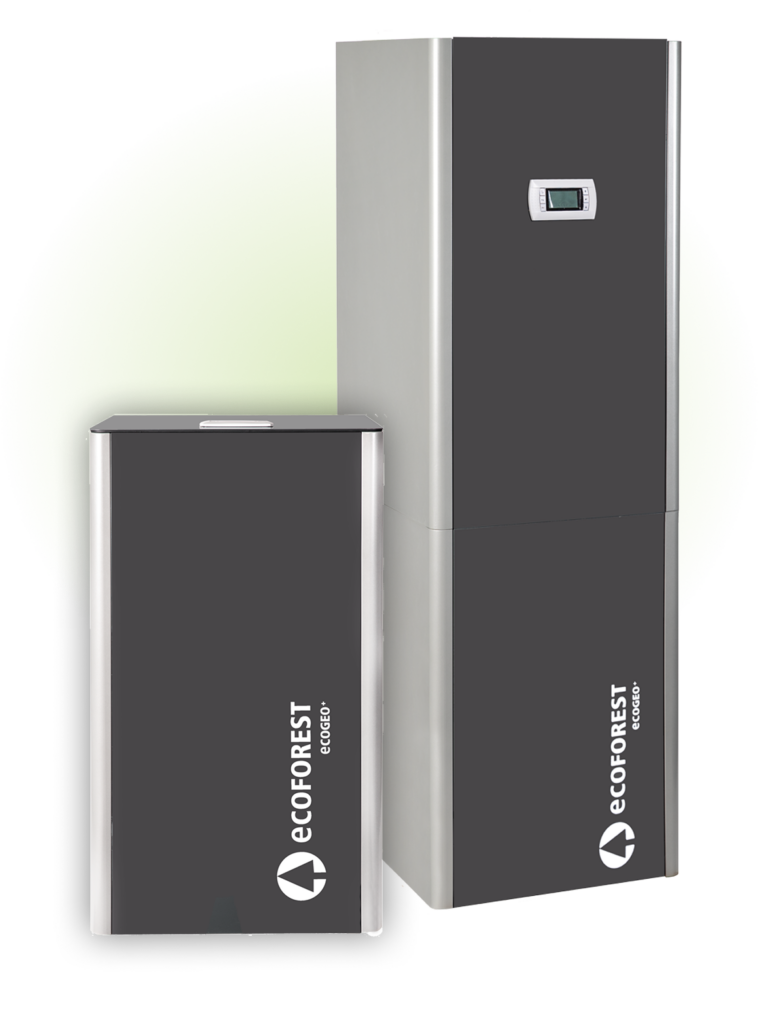

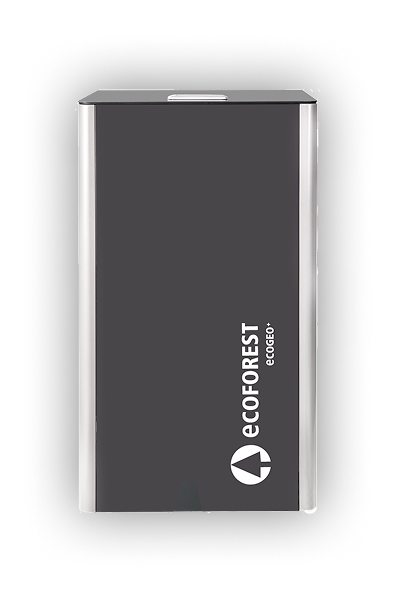

The ecoGEO+ Basic is a variable-speed water-to-water heat pump with its pumps, expansion vessels, valves and controls built in. It makes heating, cooling, hot water and pool or snow melting from the ground.
What it does in one unit.
Heating
Radiant floors, fan coils or radiators, with water up to 140 °F.
Cooling
Passive or active, depending on the model.
Hot water
On demand up to 149 °F, and up to 167 °F with HTR.
Pool or snow melting
One more circuit, controlled by the same unit.
All in one, ready to connect.
Other brands can look cheaper at the start. Then add the circulating pumps, the expansion vessels, the hot water valve and tank, the pool and the backup, plus the labor to fit and wire each one. The installed total is what counts, and an all-in-one unit saves labor in every job.
- Source and load pumpsVariable-speed circulating pumps for the ground loop and for the building.
- Expansion vesselsOn both sides, already connected.
- Hot water valveA three-way valve that switches between heating and hot water.
- Backup heaterA 6 kW electric element. It is the last resort, for extreme cold or for safety.
- HTRHot water up to 167 °F when it is needed.
- Controls and Wi-FiThe unit is the controller, with the app and the portal.
Key data.
- Capacity
- 10 to 45 MBH and 15 to 75 MBH (models 045 and 075)
- Modulation
- 15 to 100%
- Power
- Single phase 208 to 240 V
- Size
- 41.4 x 24.0 x 28.2 in
- Refrigerant
- R454B
- Models
- M1: hot water, heating, pool or snow. M2 adds passive cooling. M3 adds active cooling. M4 has it all.
Up to 3 units in cascade, and up to 6 with the Supervisor.
Certified for the US market. Certification marks per model are being confirmed.

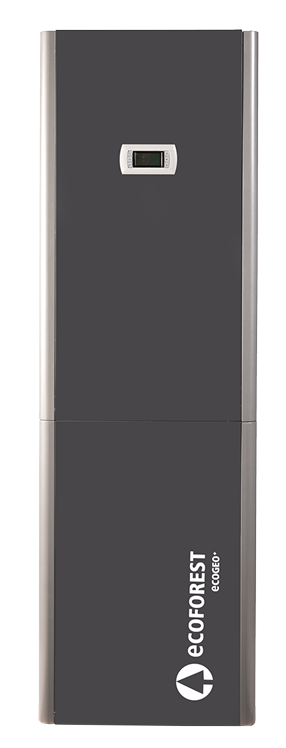

See the residential pageCompare with the Compact
Draft Data comes from the 2026 product sheets and is confirmed with engineering before it is published.
Planning a project?
Send the plans or the loads. Ecoforest’s technical office reviews the design at no cost.
